MLX90393 Triple-axis Magnetometer

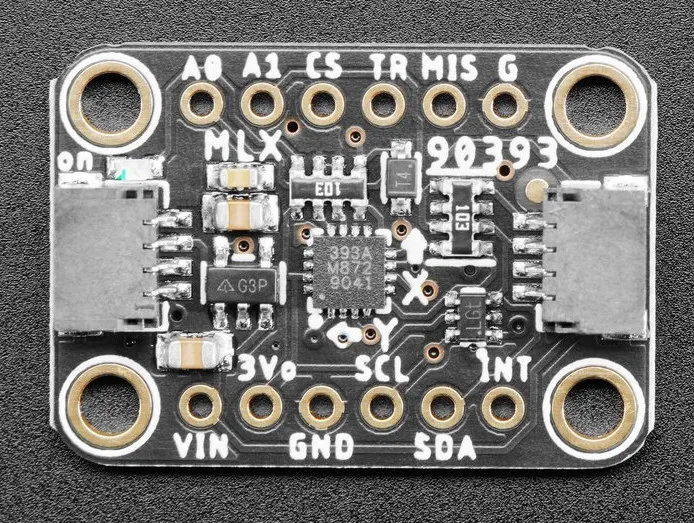

The mlx90393 sensor platform allows you to use your MLX90393 (datasheet, Adafruit) three axis magnetometer with ESPHome. The I²C is required to be set up in your configuration for this sensor to work.

# Example configuration entry
sensor:
  - platform: mlx90393
    id: mlx
    x_axis:
      name: "x"
    y_axis:
      name: "y"
    z_axis:
      name: "z"

Configuration variables

x_axis (Optional): The information for the x-axis.
- resolution (Optional, int): Specify which part of the full 19-bit value to read. Defaults to DIV_4. Must be one of:
  - DIV_8
  - DIV_4
  - DIV_2
  - DIV_1
- All other options from Sensor.
y_axis (Optional): The information for the y-axis.
- resolution (Optional, int): Specify which part of the full 19-bit value to read. Defaults to DIV_4. Must be one of:
  - DIV_8
  - DIV_4
  - DIV_2
  - DIV_1
- All other options from Sensor.
z_axis (Optional): The information for the z-axis.
- resolution (Optional, int): Specify which part of the full 19-bit value to read. Defaults to DIV_4. Must be one of:
  - DIV_8
  - DIV_4
  - DIV_2
  - DIV_1
- All other options from Sensor.
temperature (Optional): Built-in temperature sensor.
- oversampling (Optional, int): On-chip oversampling for the temperature sensor. Defaults to 0. Must be between 0 and 3.
- All other options from Sensor.
drdy_pin (Optional, Pin Schema): Data-ready pin. Often labelled INT. Using this pin might lead to slightly quicker read times.
gain (Optional, int): Sets the analog gain. Defaults to 1X. Must be one of
- 1X
- 1_25X
- 1_67X
- 2X
- 2_5X
- 3X
- 3_75X
- 5X
oversampling (Optional, int): On-chip oversampling. Defaults to 2. Must be between 0 and 3.
filter (Optional, int): On-chip digital filter. Defaults to 6. Must be between 0 and 7.
temperature_compensation (Optional, bool): On-chip temperature compensation. Defaults to false. When enabled, the resolution options DIV_8 and DIV_4 cannot be used.
hallconf (Optional, int): Modifies the hall plate spinning (2-phase vs 4-phase). Defaults to 0xC. Must be 0xC or 0x0.
update_interval (Optional, Time): The interval to check the sensor. Defaults to 60s.
address (Optional, int): Manually specify the I²C address of the sensor. Defaults to 0x0C.
i2c_id (Optional, ID): Manually specify the ID of the I²C Component if you want to use multiple I²C buses.

Gain, resolution and full scale readings

By default, the sensor is configured for the lowest sensitivity. This enables reading magnetic fields of 50,000 µT. However, sensitivity is limited to 3 µT. This can be improved significantly using the gain and resolution options, at the cost of reducing the maximum magnetic field that can be measured.

The sensor internally generates an analog signal which is sent to an amplifier. The gain option controls this amplifier. Too much amplification will cause saturation of the values, but no integer overflow.

After amplification, the analog signal is digitized using a 19-bit ADC. Only 16 bits are sent to ESPHome. The resolution option chooses which bits are sent.

Resolution options and which bits they report to ESPHome. DIV_8 sends the most significant 16 bits, while DIV_1 sends the least significant bits.

Note that the ADC doesn't actually fill all its 19 bits. This causes DIV_4 to have the same maximum field as DIV_8, while giving better sensitivity. Only DIV_2 and DIV_1 actually use all values, giving them the best dynamic range. However, both will cause integer overflows when the maximum field strength is exceeded.

After receiving the 16-bit value, ESPHome converts it to floating point values in µT. Therefore, neither gain nor resolution affects the magnitude of the values in ESPHome directly.

The following table shows the sensitivity and maximum field strength for every combination. Note that the Z axis has worse sensitivity due to hardware constraints.

| gain | resolution | sensitivity XY (µT/LSB) | max field XY (µT) | sensitivity Z (µT/LSB) | max field Z (µT) | | ----- | ---------- | ----------------------- | ----------------- | ---------------------- | ---------------- | | 1X | DIV_8 | 6.009 | 66,098 | 9.680 | 106,480 | | 1X | DIV_4 | 3.004 | 66,098 | 4.840 | 106,480 | | 1X | DIV_2 | 1.502 | 49,225 | 2.420 | 79,299 | | 1X | DIV_1 | 0.751 | 24,612 | 1.210 | 39,649 | | 1_25X | DIV_8 | 4.807 | 52,878 | 7.744 | 85,184 | | 1_25X | DIV_4 | 2.404 | 52,878 | 3.872 | 85,184 | | 1_25X | DIV_2 | 1.202 | 39,380 | 1.936 | 63,439 | | 1_25X | DIV_1 | 0.601 | 19,690 | 0.968 | 31,719 | | 1_67X | DIV_8 | 3.605 | 39,659 | 5.808 | 63,888 | | 1_67X | DIV_4 | 1.803 | 39,659 | 2.904 | 63,888 | | 1_67X | DIV_2 | 0.901 | 29,535 | 1.452 | 47,579 | | 1_67X | DIV_1 | 0.451 | 14,767 | 0.726 | 23,790 | | 2X | DIV_8 | 3.004 | 33,049 | 4.840 | 53,240 | | 2X | DIV_4 | 1.502 | 33,049 | 2.420 | 53,240 | | 2X | DIV_2 | 0.751 | 24,612 | 1.210 | 39,649 | | 2X | DIV_1 | 0.376 | 12,306 | 0.605 | 19,825 | | 2_5X | DIV_8 | 2.404 | 26,439 | 3.872 | 42,592 | | 2_5X | DIV_4 | 1.202 | 26,439 | 1.936 | 42,592 | | 2_5X | DIV_2 | 0.601 | 19,690 | 0.968 | 31,719 | | 2_5X | DIV_1 | 0.300 | 9,845 | 0.484 | 15,860 | | 3X | DIV_8 | 2.003 | 22,033 | 3.227 | 35,493 | | 3X | DIV_4 | 1.001 | 22,033 | 1.613 | 35,493 | | 3X | DIV_2 | 0.501 | 16,408 | 0.807 | 26,433 | | 3X | DIV_1 | 0.250 | 8,204 | 0.403 | 13,216 | | 3_75X | DIV_8 | 1.602 | 17,626 | 2.581 | 28,395 | | 3_75X | DIV_4 | 0.801 | 17,626 | 1.291 | 28,395 | | 3_75X | DIV_2 | 0.401 | 13,127 | 0.645 | 21,146 | | 3_75X | DIV_1 | 0.200 | 6,563 | 0.323 | 10,573 | | 5X | DIV_8 | 1.202 | 13,220 | 1.936 | 21,296 | | 5X | DIV_4 | 0.601 | 13,220 | 0.968 | 21,296 | | 5X | DIV_2 | 0.300 | 9,845 | 0.484 | 15,860 | | 5X | DIV_1 | 0.150 | 4,922 | 0.242 | 7,930 |

For hallconf = 0x0, the sensitivity scales with a factor 98/75. For example 0.150μT/LSB with HALLCONF 0xC becomes 0.196μT/LSB with HALLCONF 0x0. The maximum field strength changes accordingly.
